chess clock

Showing a 5+0 setup, 5 minutes main time with zero increment

At the end of this stupid year, ravaged by GovId-19 too, not just by covid-19, I put together a chess clock. Even though the number of people I can play with physically is really limited — obviously not everyone thinks, like me, that a calculated risk is worth a decent amount of freedom, poor old BF with who does or does not deserve what exactly — I just wanted to put together the clock, cause why not. Although it is a microsoft site, I published the project on github.

One thing a friend of mine noted: the lunch box… I find it one of the greatest challenges about home made gadgets to find the right box for them, without the 3d printer black magic. I also wanted this one to be transparent.

Another thing, more of a philosophical nature: the more I play around with arduinos, the more I realize how much effort went into the whole thing to be easy like a toy, instead of the PITA it could have been, to enable one to really create on top of an abstraction layer, in contrast with such mindfucks as that of  manually calculating the value of a register to attain a baudrate on some obscure microcontroller I ran into at work, because libraries, because bootstrapping, and because it’s the business logic we are focused on, not reinventing the wheels of bit counting. Really, it’s almost 2021.

So here we go, I implemented the Fischer increment clock, or at least the way I understand it. The current hardware is a bit limited to shorter games, as there are not enough segments on the clock to display HH:MM:SS, and I didn’t want to go into shenanigans about how and when to shift right-trim-roundoff etc. Also, I really don’t play games that are longer than a lunch break.

It hasn’t yet been tested face to face. I just don’t want to end the year without publishing it. Just in case :P

schematic

schematic

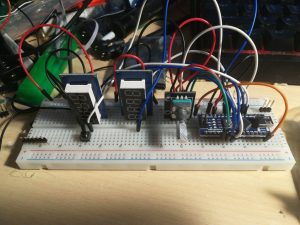

breadboarding

breadboarding

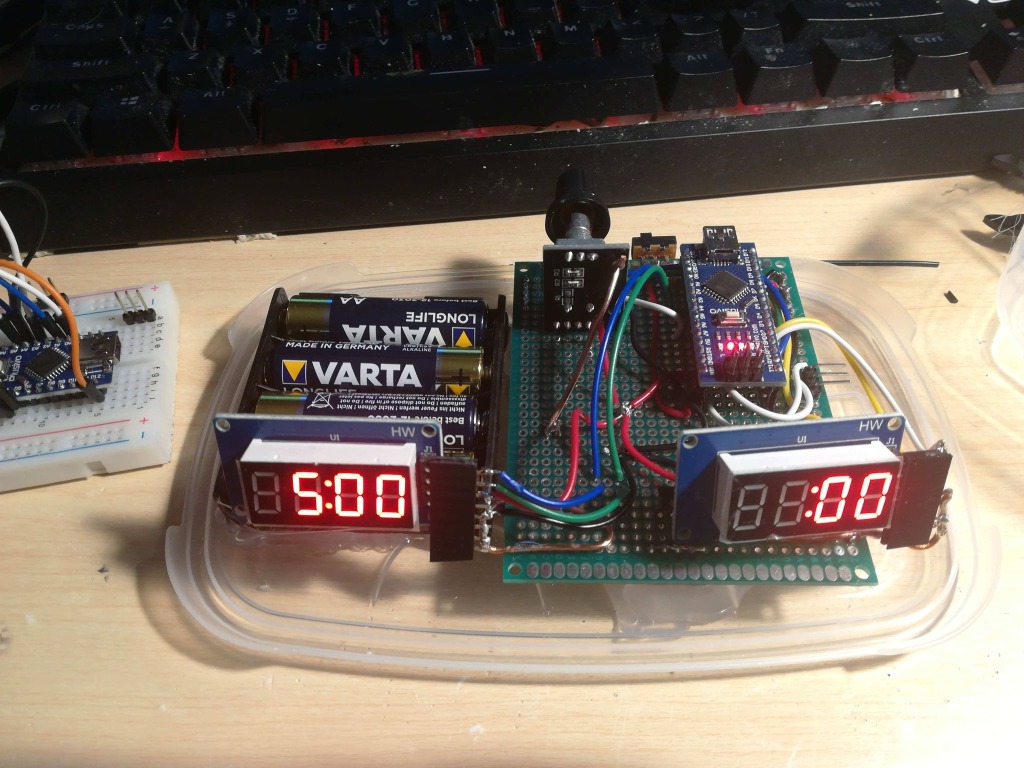

mainboard

mainboard

/*
 *
 * title: chess clock, implements the Fischer-clock (mainTime + increment)
 * author: Pal VARADI NAGY
 * website: csillagtura.ro
 * copyright: copyleft
 * board: arduino nano or compatible
 * dependencies: sevenSegmentTM1637 library
 *
 */

#define VERSION_STRING "20201227"



#include <EEPROM.h>
#include <Encoder.h>
#include <SevenSegmentAsciiMap.h>
#include <SevenSegmentExtended.h>
#include <SevenSegmentFun.h>
#include <SevenSegmentTM1637.h>

// ===================  CONFIG  ===============

#define DEFAULT_GAMETIME___MAINTIME___SECONDS (3*60)
#define DEFAULT_GAMETIME___INCREMENT___SECONDS (5)

#define IMPLEMENT_THE_HOURS 0 /* not enough segments on the PCB */

#define BEEP_QUEUE_TICK_DURATION_MS 5

#define FREQ_WHITE_TO_MOVE_HZ (440*4)
#define FREQ_BLACK_TO_MOVE_HZ (440*3)
#define FREQ_UNKNOWN_ACTION_HZ (210)

#define SERIAL_BAUDRATE 9600

#define DEBUGTOSERIAL 0


// ===================  PINS  ===============


#define PIN_BUZZER 12
#define PIN_LED_OUTPUT 13

#define PIN_SEVENSEG_BLACK_CLOCK A0
#define PIN_SEVENSEG_BLACK_DATA A1

#define PIN_SEVENSEG_WHITE_CLOCK 4
#define PIN_SEVENSEG_WHITE_DATA 5

#define PIN_ENCODER_1 2
#define PIN_ENCODER_2 3
#define PIN_ENCODER_BUTTON A3

#define PIN_WHITE 11
#define PIN_BLACK A2



// ===================  TYPES  ===============

#define EEPROM_PERSISTED_DATA_OFFSET 0

/* important for persisting into the EEPROM */
#define SANITY_STRING "sanity"
typedef char SanityCheck[8];

typedef char VersionString[8];

typedef struct GameTime {
  uint16_t mainTime_s;
  uint16_t increment_s;
} GameTime;

typedef char ShortString[16];

typedef struct PersistedData {
  SanityCheck sanityCheck;
  VersionString versionString;
  GameTime gameTime;
  SanityCheck sanityCheck2;
} PersistedData;

typedef enum ClockState{
  #if 1 == IMPLEMENT_THE_HOURS
  SetupFirstValidPositionAfterThis,
  #endif
  SetupMainTimeHoursX,
  SetupMainTimeHoursI,
  #if 0 == IMPLEMENT_THE_HOURS
  SetupFirstValidPositionAfterThis,
  #endif
  SetupMainTimeMinutesX,
  SetupMainTimeMinutesI,
  SetupMainTimeSecondsX,
  SetupMainTimeSecondsI,

  SetupIncrementMinutesX,
  SetupIncrementMinutesI,
  SetupIncrementSecondsX,
  SetupIncrementSecondsI,

  SetupInvalidPosition,

  PlayWhiteToMove,
  PlayBlackToMove,

} ClockState;

typedef enum ClockButton {
  bNone,
  bShift,
  bDecrease,
  bIncrease,
  bWhite,
  bBlack
} ClockButton;


typedef struct ButtonState {
  int currentState;
  int oldState;
  int sameStateCounter;
  int skipsLeft;
} ButtonState;

typedef struct Inputs {
  uint32_t lastTickExecutedAtMillis;
  uint32_t encoderLastTickExecutedAtMillis;
  uint32_t lastButtonEventConflictingWithEncoderAtMillis;
  int encoderPosition;
  int encoderDelta;
  int oldEncoderPosition;
  int encoderSamePositionCounter;
  int encoderLastConsideredPosition;
  ButtonState encoderButton;
  ButtonState white;
  ButtonState black;
} Inputs;

typedef struct TimeLeft {
  uint16_t black;
  uint16_t white;
  ShortString whiteAsString;
  ShortString blackAsString;
  uint32_t lastTickExecutedAtMillis;
} TimeLeft;

typedef struct Displays {
  uint32_t lastTickExecutedAtMillis;
  byte blinkerState;
  byte forceFlag;
  ShortString leftDisplay;
  ShortString rightDisplay;
  ShortString leftDisplayInternal;
  ShortString rightDisplayInternal;
} Displays;




typedef struct BeepQueueItem {
  uint16_t valid;
  uint16_t freq;
  uint16_t timeLeft_ms;
} BeepQueueItem;

#define BEEP_QUEUE_ITEM_COUNT 32

typedef struct BeepQueue {
  uint32_t lastTickExecutedAtMillis;
  int16_t readCursor;
  int16_t writeCursor;
  uint16_t currentFreq;
  BeepQueueItem items[BEEP_QUEUE_ITEM_COUNT];
} BeepQueue;


// ================= globals ===================

Displays displays;
BeepQueue beepQueue;

Encoder settingsEncoder(PIN_ENCODER_1, PIN_ENCODER_2);

SevenSegmentExtended  sevenSegBlackMinSec((byte)PIN_SEVENSEG_BLACK_CLOCK, (byte)PIN_SEVENSEG_BLACK_DATA);
SevenSegmentExtended  sevenSegWhiteMinSec((byte)PIN_SEVENSEG_WHITE_CLOCK, (byte)PIN_SEVENSEG_WHITE_DATA);

Inputs inputs;

byte persistedDataIsDirty = 0;
PersistedData persistedData;

TimeLeft currentGameTimeLeft_s;

int clockState;

//================= some utils ====================

void secToString(uint16_t sec, char *dest){
  int di = 0;
  if (1==IMPLEMENT_THE_HOURS){
    // hhmmss
    dest[di++] = (sec / (3600 * 10)) + 48;
    sec = sec % (3600*10);
    dest[di++] = (sec / (3600 * 1))+48;
    sec = sec % (3600 * 1);
  }else{
    // mmss as below
  }
  dest[di++] = (sec / (60*10)) + 48;
  sec = sec % (60*10);
  dest[di++] = (sec / (60 * 1)) + 48;
  sec = sec % (60 * 1);
  dest[di++] = (sec / (10 * 1)) + 48;
  sec = sec % (10 * 1);
  dest[di++] = (sec % 10) + 48;
  dest[di++] = 0;
}

void secToStringWithoutLeadingZeros(uint16_t sec, char *dest){
  secToString(sec, dest);
  int i = 0;
  int len = strlen(dest);
  while ((dest[i] == 48)&&(i < len - 2)){
    //leave at least two zeros
    dest[i] = 32;
    i++;
  }
}

uint16_t stringToSec(char * src){
  uint16_t sec = 0;
  int p = strlen(src)-1;
  uint16_t multi[] = {1, 10, 60, 600, 3600, 36000};
  int j = 0;
  while ((p >= 0)&&(j < 6)){
    if ((src[p] >= 48)&&(src[p] <= 48 + 9)){
      sec += (src[p]-48)*multi[j];
    }
    p--;
    j++;
  }
  return sec;
}

void setTimeDigit(uint16_t * psec, byte digit, short int dir){
  //digit is from right to left
  uint8_t mt[16];
  secToString(psec[0], mt);
  //Serial.print((char *)mt);
  //delay(1000);
  int theMax = 9;
  if (1 == digit){
    theMax = 5;
  }
  if (3 == digit){
    theMax = 5;
  }

  int p = strlen(mt)-1 -digit;
  if (p >= 0){
    mt[p] = mt[p] + dir;
    if (mt[p] < 48){
      mt[p] = 48+theMax;
    };
    if (mt[p] > 48+theMax){
      mt[p] = 48;
    };
  }
  psec[0] = stringToSec(mt);
}


// ================= implementation: non-blocking beeps ===================

void Beep_setup(){
  pinMode(PIN_BUZZER, OUTPUT);
  pinMode(PIN_LED_OUTPUT, OUTPUT);
}

void Beep_adjustCursors(){
  while ((beepQueue.writeCursor >= BEEP_QUEUE_ITEM_COUNT) && (beepQueue.readCursor >= BEEP_QUEUE_ITEM_COUNT)){
    beepQueue.writeCursor -= BEEP_QUEUE_ITEM_COUNT;
    beepQueue.readCursor -= BEEP_QUEUE_ITEM_COUNT;
  }
}

void Beep_enqueue(uint16_t freq, uint16_t duration_ms){
  // duration gets rounded to tick-length
  beepQueue.items[beepQueue.writeCursor % BEEP_QUEUE_ITEM_COUNT ].valid = 1;
  beepQueue.items[beepQueue.writeCursor % BEEP_QUEUE_ITEM_COUNT ].freq = freq;
  beepQueue.items[beepQueue.writeCursor % BEEP_QUEUE_ITEM_COUNT ].timeLeft_ms = duration_ms;
  beepQueue.writeCursor++;
  Beep_adjustCursors();
}

void Beep_enqueueFreqAndSilence(uint16_t freq, uint16_t freq_dur_ms, uint16_t silence_dur_ms){
  Beep_enqueue(freq, freq_dur_ms);
  Beep_enqueue(0, silence_dur_ms);
}

void Beep_executeFreq(uint16_t freq){
  //freq 0 is silence

  if (beepQueue.currentFreq != freq){
    beepQueue.currentFreq = freq;
    if (0 == freq){
      noTone(PIN_BUZZER);
      pinMode(PIN_BUZZER, INPUT);
      // the buzzer made a noise if left OUTPUT,
      //   due to the buzzing of the TM1637 displays
      digitalWrite(PIN_LED_OUTPUT, LOW);
    }else{
      pinMode(PIN_BUZZER, OUTPUT);
      tone(PIN_BUZZER, freq);
      digitalWrite(PIN_LED_OUTPUT, HIGH);
    }
  }
}


void Beep_tick(void){
  if (beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].valid){
    Beep_executeFreq(beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].freq);
    if (beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].timeLeft_ms < BEEP_QUEUE_TICK_DURATION_MS){
      beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].timeLeft_ms = 0;
    }else{
      beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].timeLeft_ms -= BEEP_QUEUE_TICK_DURATION_MS;
    }
    if (0 == beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].timeLeft_ms ){
      beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].valid = 0;
      beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].freq = 0;
      if (beepQueue.readCursor < beepQueue.writeCursor){
        beepQueue.readCursor++;
        Beep_adjustCursors();
      }
      if (1 == beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].valid){
        Beep_executeFreq(beepQueue.items[beepQueue.readCursor % BEEP_QUEUE_ITEM_COUNT ].freq);
      }else{
        Beep_executeFreq(0);
      }
    }
  }else{
    Beep_executeFreq(0);
  }
}

void Beep_mainLoopEntry(uint32_t present){
  if (present - beepQueue.lastTickExecutedAtMillis >= BEEP_QUEUE_TICK_DURATION_MS){
    beepQueue.lastTickExecutedAtMillis = present;
    Beep_tick();
  }
}

//============== clock-related beeps ====================

inline void output_blackToMove(void){
  Beep_enqueueFreqAndSilence(FREQ_BLACK_TO_MOVE_HZ, 50, 50);
  Beep_enqueueFreqAndSilence(FREQ_BLACK_TO_MOVE_HZ, 50, 50);
  Beep_enqueueFreqAndSilence(FREQ_BLACK_TO_MOVE_HZ, 50, 50);
};

inline void output_whiteToMove(void){
  Beep_enqueueFreqAndSilence(FREQ_WHITE_TO_MOVE_HZ, 50, 50);
  Beep_enqueueFreqAndSilence(FREQ_WHITE_TO_MOVE_HZ, 50, 50);
  Beep_enqueueFreqAndSilence(FREQ_WHITE_TO_MOVE_HZ, 50, 50);
};

inline void output_gameStart(void){
  output_whiteToMove();
};

void output_blackLostByTime(void){
  // 5th sym
  Beep_enqueueFreqAndSilence(784,   50, 50);
  Beep_enqueueFreqAndSilence(784,   50, 50);
  Beep_enqueueFreqAndSilence(784,   50, 50);
  Beep_enqueueFreqAndSilence(622, 1000, 50);
};

void output_whiteLostByTime(void){
  // 5th sym
  Beep_enqueueFreqAndSilence(1568,   50, 50);
  Beep_enqueueFreqAndSilence(1568,   50, 50);
  Beep_enqueueFreqAndSilence(1568,   50, 50);
  Beep_enqueueFreqAndSilence(1244, 1000, 50);
};


inline void output_settingsExecuted(void){
  Beep_enqueueFreqAndSilence(1200, 100, 50);
}

inline void output_unknownAction(void){
  Beep_enqueueFreqAndSilence(FREQ_UNKNOWN_ACTION_HZ, 50, 50);
  Beep_enqueueFreqAndSilence(FREQ_UNKNOWN_ACTION_HZ, 50, 50);
  Beep_enqueueFreqAndSilence(FREQ_UNKNOWN_ACTION_HZ, 50, 50);
}

void output_boot(void){
  Beep_enqueueFreqAndSilence(440*4, 50, 50);
  Beep_enqueueFreqAndSilence(440*5, 50, 50);
  Beep_enqueueFreqAndSilence(440*6, 50, 50);
};

// ================= implementation: inputs ===================


int ButtonState_process(ButtonState * pb){
  if (pb->skipsLeft > 0){
    pb->skipsLeft--;
    pb->sameStateCounter = 0;
    return 0;
  }
  if (pb->currentState == pb->oldState){
    pb->sameStateCounter++;
  }else{
    pb->sameStateCounter = 0;
    pb->oldState = pb->currentState;
  }
  if (pb->sameStateCounter > 5){
    pb->sameStateCounter = 5;
    if (1 == pb->currentState){
      pb->skipsLeft = 50;
      return 1;
    }
  }
  return 0;
}


int _Encoder_mainLoopEntry(uint32_t present){
  int ret = bNone;
  inputs.encoderPosition = settingsEncoder.read();
  int32_t d = present;
  d -= inputs.encoderLastTickExecutedAtMillis;
  if (present - inputs.lastButtonEventConflictingWithEncoderAtMillis < 200){
    d = -1;
  }
  if (d < 0){
    inputs.oldEncoderPosition = inputs.encoderPosition;

  }else{
    //no conflicts, not premature
    if (inputs.oldEncoderPosition != inputs.encoderPosition){
      if (inputs.oldEncoderPosition < inputs.encoderPosition){
        inputs.encoderDelta++;
      }
      if (inputs.oldEncoderPosition > inputs.encoderPosition){
        inputs.encoderDelta--;
      }
      inputs.oldEncoderPosition = inputs.encoderPosition;
      inputs.encoderSamePositionCounter = 0;
    }else{
      inputs.encoderSamePositionCounter++;
    }

    if (inputs.encoderSamePositionCounter > 1000){
      inputs.encoderSamePositionCounter = 1000;
      if (present - inputs.encoderLastTickExecutedAtMillis > 100){
        inputs.encoderLastTickExecutedAtMillis = present;
        if (inputs.encoderDelta < 0){
          ret = bDecrease;
        }
        if (inputs.encoderDelta > 0){
          ret = bIncrease;
        }
        if (inputs.encoderDelta != 0){
          // throttle
          inputs.encoderLastTickExecutedAtMillis += 250;
        }
        inputs.encoderDelta = 0;
        inputs.encoderSamePositionCounter = 0;
      }
    }
  }
  return ret;
}
void Inputs_setup(void){
  pinMode(PIN_ENCODER_BUTTON, INPUT_PULLUP);
  pinMode(PIN_WHITE, INPUT_PULLUP);
  pinMode(PIN_BLACK, INPUT_PULLUP);
}

int Inputs_mainLoopEntry(uint32_t present){
  int ret = bNone;
  inputs.white.currentState = (digitalRead(PIN_WHITE) == HIGH) ? 0 : 1;
  inputs.black.currentState = (digitalRead(PIN_BLACK) == HIGH) ? 0 : 1;
  inputs.encoderButton.currentState = (digitalRead(PIN_ENCODER_BUTTON) == HIGH) ? 0 : 1;

  if (present - inputs.lastTickExecutedAtMillis > 5){
    inputs.lastTickExecutedAtMillis = present;
    if (ButtonState_process(&inputs.black)){
       ret = bBlack;
    }
    if (ButtonState_process(&inputs.white)){
       ret = bWhite;
    }
    if (ButtonState_process(&inputs.encoderButton)){
       inputs.lastButtonEventConflictingWithEncoderAtMillis = present;
       ret = bShift;
    }
  }
  if (bNone == ret){
    ret = _Encoder_mainLoopEntry(present);
  }
  return ret;
}

void Clock_processUserInput(int b){
  if (bShift == b){
    ClockState_executeButtonAction(bShift);
    Displays_forceRefresh();
  }
  if (bWhite == b){
    ClockState_executeButtonAction(bWhite);
    secToStringWithoutLeadingZeros(currentGameTimeLeft_s.black, displays.leftDisplay);
    secToStringWithoutLeadingZeros(currentGameTimeLeft_s.white, displays.rightDisplay);
    Displays_forceRefresh();
  }
  if (bBlack == b){
    ClockState_executeButtonAction(bBlack);
    secToStringWithoutLeadingZeros(currentGameTimeLeft_s.black, displays.leftDisplay);
    secToStringWithoutLeadingZeros(currentGameTimeLeft_s.white, displays.rightDisplay);
    Displays_forceRefresh();
  };
  if (bDecrease == b){
    ClockState_executeButtonAction(bDecrease);
    Displays_forceRefresh();
  }
  if (bIncrease == b){
    ClockState_executeButtonAction(bIncrease);
    Displays_forceRefresh();
  };
}

//


//======== implementation: Persisted Data ======================

void PersistedData_setDefault(){
  strcpy(persistedData.sanityCheck, SANITY_STRING);
  strcpy(persistedData.sanityCheck2, SANITY_STRING);
  strcpy(persistedData.versionString, VERSION_STRING);
  persistedData.gameTime.mainTime_s = DEFAULT_GAMETIME___MAINTIME___SECONDS;
  persistedData.gameTime.increment_s = DEFAULT_GAMETIME___INCREMENT___SECONDS;
  persistedDataIsDirty = 1;
}

void PersistedData_toCurrentGameTime(){
  currentGameTimeLeft_s.white = persistedData.gameTime.mainTime_s;
  currentGameTimeLeft_s.black = persistedData.gameTime.mainTime_s;
  currentGameTimeLeft_s.lastTickExecutedAtMillis = millis();
}

void PersistedData_load(){
  EEPROM.get(EEPROM_PERSISTED_DATA_OFFSET, persistedData);
  if ((strcmp(SANITY_STRING, persistedData.sanityCheck) != 0) || (strcmp(SANITY_STRING, persistedData.sanityCheck2) != 0)){
    // uninitialized eeprom, maybe
    PersistedData_setDefault();
  }else{
    // the version may still be a mismatch,
    //  but at least the record is byte compatible
    //  so we ignore this now
  }
  PersistedData_toCurrentGameTime();
}

void PersistedData_persistIfDirty(){
  if (0 != persistedDataIsDirty){
    persistedDataIsDirty = 0;
    Serial.println("persisting to eeprom");
    EEPROM.put(EEPROM_PERSISTED_DATA_OFFSET, persistedData);
  }
}

//======== implementation: chess clock input ====================

void setMainTimeDigit(byte digit, short int dir){
  setTimeDigit(&persistedData.gameTime.mainTime_s, digit, dir);
  persistedDataIsDirty = 1;
}

void setIncrementDigit(byte digit, short int dir){
  setTimeDigit(&persistedData.gameTime.increment_s, digit, dir);
  persistedDataIsDirty = 1;
}

void ClockState_executeButtonAction(int b){
  int beepHandled = 0;
  Debug_printButtonExecution(b);
  if (bShift == b){
    if ((PlayWhiteToMove == clockState) || (PlayBlackToMove == clockState)){
      clockState = SetupInvalidPosition;
      // effectively freezes the game clock before entering setup
      // should all blink
      return ;
    }
    clockState++;
    if (clockState >= SetupInvalidPosition){
      clockState = SetupFirstValidPositionAfterThis+1;
    }
    output_settingsExecuted();
    return ;
  }

  if ((bDecrease == b) || (bIncrease == b)){
    int bh = 0;
    if (SetupMainTimeHoursX == clockState){
      setMainTimeDigit(5, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }
    if (SetupMainTimeHoursI == clockState){
      setMainTimeDigit(4, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }
    if (SetupMainTimeMinutesX == clockState){
      setMainTimeDigit(3, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }
    if (SetupMainTimeMinutesI == clockState){
      setMainTimeDigit(2, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }
    if (SetupMainTimeSecondsX == clockState){
      setMainTimeDigit(1, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }
    if (SetupMainTimeSecondsI == clockState){
      setMainTimeDigit(0, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }
    if (SetupIncrementMinutesX == clockState){
      setIncrementDigit(3, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }
    if (SetupIncrementMinutesI == clockState){
      setIncrementDigit(2, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }
    if (SetupIncrementSecondsX == clockState){
      setIncrementDigit(1, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }
    if (SetupIncrementSecondsI == clockState){
      setIncrementDigit(0, (bDecrease == b) ? -1 : 1);
      bh = 1;
    }

    if (1 == bh){
      beepHandled = 1;
      output_settingsExecuted();
    }
  };



  if (bBlack == b){
    if (clockState <= SetupInvalidPosition){
      //we are in setup, so this starts the game
      PersistedData_toCurrentGameTime();
      PersistedData_persistIfDirty();
      clockState = PlayWhiteToMove;
      output_gameStart();
      beepHandled = 1;
    }else{
      //we are in a game, so switch
      if (PlayBlackToMove == clockState){
        clockState = PlayWhiteToMove;
        if (currentGameTimeLeft_s.black > 0){
          currentGameTimeLeft_s.black += persistedData.gameTime.increment_s;
          output_whiteToMove();
          beepHandled = 1;
        }
      }
    }
  }
  if (bWhite == b){
    if (clockState <= SetupInvalidPosition){
      //we are in setup, so this does nothing
    }else{
      //we are in a game, so switch
      if (PlayWhiteToMove == clockState){
        clockState = PlayBlackToMove;
        if (currentGameTimeLeft_s.white > 0){
          currentGameTimeLeft_s.white += persistedData.gameTime.increment_s;
        }
        output_blackToMove();
        beepHandled = 1;
      }
    }
  }
  if (0 == beepHandled){
    output_unknownAction();
  }
}




void Displays_forceRefresh(void){
  displays.forceFlag = 1;
}

void Displays_copyFromExternalToInternalConsideringSevenSegSizes(char * dest, char * src){
  int charLen = 8;
  if (1 == IMPLEMENT_THE_HOURS){
    //
  }else{
    charLen = 4;
  }
  dest[0] = 0;
  int delta = charLen - strlen(src);
  while (delta > 0){
    strcat(dest, " ");
    delta--;
  }
  if (delta < 0){
    // truncate stuff on the left
    delta = 0 - delta;
  }
  strcpy(dest, src + delta);
}

void Displays_blinkOutDigit(int digit, int leftOrRight){
  char * s;
  if (0 == leftOrRight){
    s = displays.leftDisplayInternal;
  }else{
    s = displays.rightDisplayInternal;
  }
  int len = strlen(s);
  int i = len - 1 - digit;
  if (digit >= 0){
    if (displays.blinkerState % 2 == 0){
      s[i] = ' ';
    }
  }
};



void Displays_blankAccordingToClockState(){
    if (SetupMainTimeHoursX == clockState){
      Displays_blinkOutDigit(5, 0);
    }
    if (SetupMainTimeHoursI == clockState){
      Displays_blinkOutDigit(4, 0);
    }
//----
    if (SetupMainTimeMinutesX == clockState){
      Displays_blinkOutDigit(3, 0);
    }
    if (SetupMainTimeMinutesI == clockState){
      Displays_blinkOutDigit(2, 0);
    }
    if (SetupMainTimeSecondsX == clockState){
      Displays_blinkOutDigit(1, 0);
    }
    if (SetupMainTimeSecondsI == clockState){
      Displays_blinkOutDigit(0, 0);
    }
//----
    if (SetupIncrementMinutesX == clockState){
      Displays_blinkOutDigit(3, 1);
    }
    if (SetupIncrementMinutesI == clockState){
      Displays_blinkOutDigit(2, 1);
    }
    if (SetupIncrementSecondsX == clockState){
      Displays_blinkOutDigit(1, 1);
    }
    if (SetupIncrementSecondsI == clockState){
      Displays_blinkOutDigit(0, 1);
    }
}

void Displays_writeInternalsOntoTheSevenSegs(void){
      sevenSegBlackMinSec.print(displays.leftDisplayInternal);
      sevenSegWhiteMinSec.print(displays.rightDisplayInternal);
}

void Displays_putColonAccordingToClockState(void){
    int colonHandled = 0;
    if (clockState == PlayWhiteToMove){
      colonHandled = 1;
      sevenSegWhiteMinSec.setColonOn(0 == displays.blinkerState % 2);
      sevenSegBlackMinSec.setColonOn(1 == 1);
    }
    if (clockState == PlayBlackToMove){
      colonHandled = 1;
      sevenSegWhiteMinSec.setColonOn(1 == 1);
      sevenSegBlackMinSec.setColonOn(0 == displays.blinkerState % 2);
    }

    if (0 == colonHandled){
      sevenSegBlackMinSec.setColonOn(0 == displays.blinkerState % 2);
      sevenSegWhiteMinSec.setColonOn(0 == displays.blinkerState % 2);
    }
}

void Displays_setup(){
  sevenSegWhiteMinSec.begin();
  sevenSegWhiteMinSec.setBacklight(100);  // set the brightness to 100 %
  sevenSegBlackMinSec.begin();
  sevenSegBlackMinSec.setBacklight(100);  // set the brightness to 100 %
  Displays_forceRefresh();
}

void Displays_mainLoopEntry(uint32_t present){
  if ((present - displays.lastTickExecutedAtMillis >= 250) || (1 == displays.forceFlag)){
    if ((clockState >= SetupFirstValidPositionAfterThis) && (clockState < SetupInvalidPosition)){
       secToString(persistedData.gameTime.mainTime_s, displays.leftDisplay);
       secToString(persistedData.gameTime.increment_s, displays.rightDisplay);
    }
    Debug_printClockState();
    displays.lastTickExecutedAtMillis = present;
    displays.forceFlag = 0;
    displays.blinkerState++;
    Displays_copyFromExternalToInternalConsideringSevenSegSizes(displays.leftDisplayInternal, displays.leftDisplay);
    Displays_copyFromExternalToInternalConsideringSevenSegSizes(displays.rightDisplayInternal, displays.rightDisplay);
    Displays_blankAccordingToClockState();
    Displays_putColonAccordingToClockState();

    Displays_writeInternalsOntoTheSevenSegs();

    Serial.print(displays.leftDisplayInternal);
    Serial.print(' ');
    Serial.println(displays.rightDisplayInternal);
  }
}

void Game_mainLoopEntry(uint32_t present){
  if (present - currentGameTimeLeft_s.lastTickExecutedAtMillis >= 1000){
    currentGameTimeLeft_s.lastTickExecutedAtMillis = present;
    if (PlayWhiteToMove == clockState){
      if (currentGameTimeLeft_s.white > 0){
        currentGameTimeLeft_s.white--;
      }else{
        currentGameTimeLeft_s.white = 0;
        clockState = SetupInvalidPosition;
        output_whiteLostByTime();
      }
      secToStringWithoutLeadingZeros(currentGameTimeLeft_s.black, displays.leftDisplay);
      secToStringWithoutLeadingZeros(currentGameTimeLeft_s.white, displays.rightDisplay);
      Displays_forceRefresh();
    };
    if (PlayBlackToMove == clockState){
      if (currentGameTimeLeft_s.black > 0){
        currentGameTimeLeft_s.black--;
      }else{
        currentGameTimeLeft_s.black = 0;
        clockState = SetupInvalidPosition;
        output_blackLostByTime();
      }
      secToStringWithoutLeadingZeros(currentGameTimeLeft_s.black, displays.leftDisplay);
      secToStringWithoutLeadingZeros(currentGameTimeLeft_s.white, displays.rightDisplay);
      Displays_forceRefresh();
    };
  };
}


//======== some debug code =============================


void Debug_printClockState(){
  #if 1 == DEBUGTOSERIAL
    Serial.print("clockstate=");
    if (clockState == SetupMainTimeHoursX){
      Serial.println("SetupMainTimeHoursX");
    }
    if (clockState == SetupMainTimeHoursI){
      Serial.println("SetupMainTimeHoursI");
    }
    if (clockState == SetupFirstValidPositionAfterThis){
      Serial.println("SetupFirstValidPositionAfterThis");
    }
    if (clockState == SetupMainTimeMinutesX){
      Serial.println("SetupMainTimeMinutesX");
    }
    if (clockState == SetupMainTimeMinutesI){
      Serial.println("SetupMainTimeMinutesI");
    }
    if (clockState == SetupMainTimeSecondsX){
      Serial.println("SetupMainTimeSecondsX");
    }
    if (clockState == SetupMainTimeSecondsI){
      Serial.println("SetupMainTimeSecondsI");
    }
    if (clockState == SetupIncrementMinutesX){
      Serial.println("SetupIncrementMinutesX");
    }
    if (clockState == SetupIncrementMinutesI){
      Serial.println("SetupIncrementMinutesI");
    }
    if (clockState == SetupIncrementSecondsX){
      Serial.println("SetupIncrementSecondsX");
    }
    if (clockState == SetupIncrementSecondsI){
      Serial.println("SetupIncrementSecondsI");
    }
    if (clockState == SetupInvalidPosition){
      Serial.println("SetupInvalidPosition");
    }
    if (clockState == PlayWhiteToMove){
      Serial.println("PlayWhiteToMove");
    }
    if (clockState == PlayBlackToMove){
      Serial.println("PlayBlackToMove");
    }
  #endif
}


void Debug_printButtonExecution(int b){
  #if 1 == DEBUGTOSERIAL
  Serial.print("buttonExec=");
  if (bShift == b){
    Serial.println("bShift");
  }
  if (bDecrease == b){
    Serial.println("bDecrease");
  }
  if (bIncrease == b){
    Serial.println("bIncrease");
  }
  if (bWhite == b){
    Serial.println("bWhite");
  }
  if (bBlack == b){
    Serial.println("bBlack");
  }
  #endif
};

void ClockState_setup(){
  clockState = SetupInvalidPosition;
  secToStringWithoutLeadingZeros(persistedData.gameTime.mainTime_s, displays.leftDisplay);
  secToStringWithoutLeadingZeros(persistedData.gameTime.increment_s, displays.rightDisplay);
}

//===== the arduino callbacks =====================================

void setup() {
  Serial.begin(SERIAL_BAUDRATE);
  Beep_setup();
  Inputs_setup();
  PersistedData_load();
  ClockState_setup();
  Displays_setup();
  output_boot();
}



void loop() {
  uint32_t present = millis();
  Beep_mainLoopEntry(present);
  Game_mainLoopEntry(present);
  Clock_processUserInput(
    Inputs_mainLoopEntry(present)
  );
  Displays_mainLoopEntry(present);
}





facebooktwittergoogle_plusredditpinterestlinkedinmail
