Using the good old 150/750 tube, with a ND3.8 film in front, I obtained the following frames.

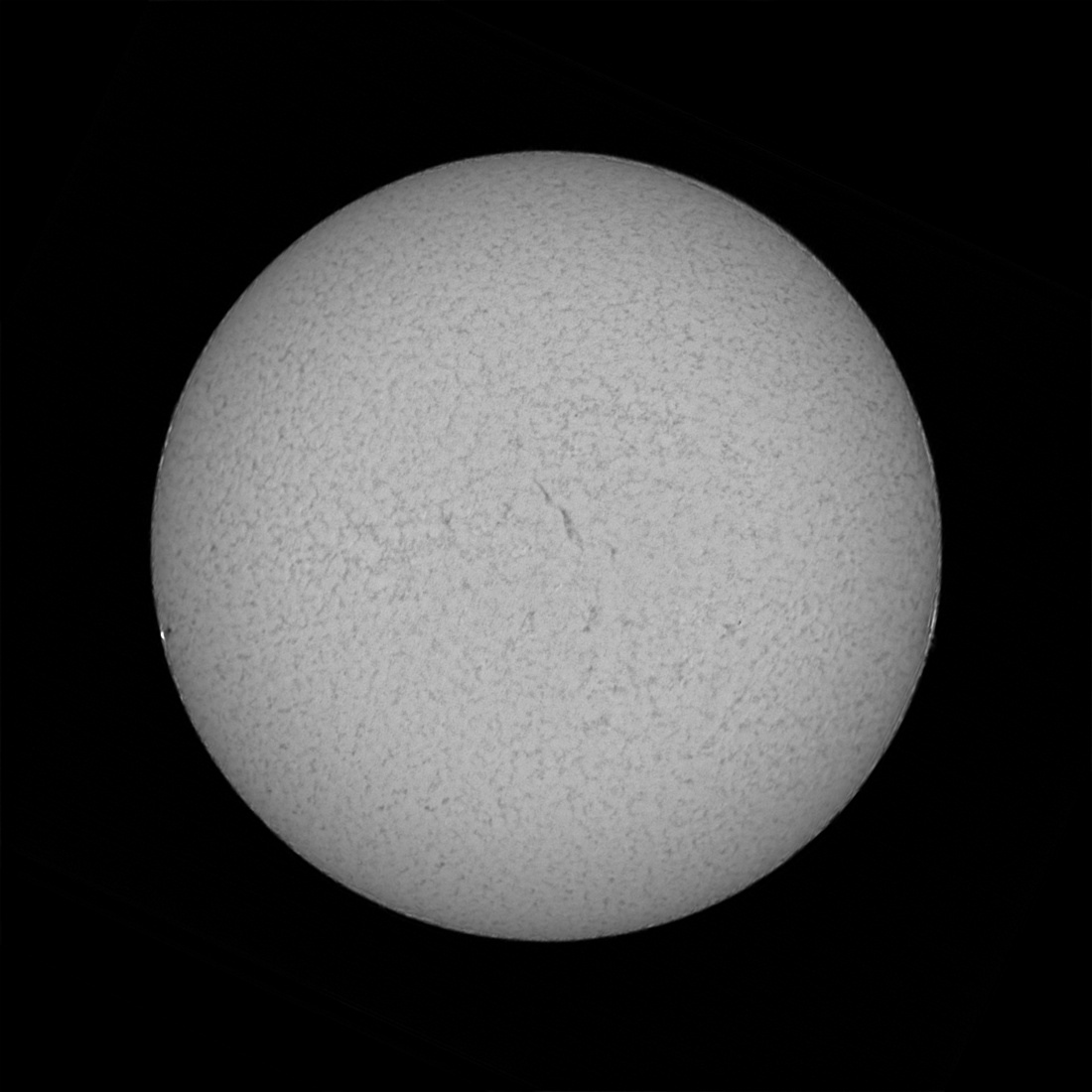

For reference, a Lunt CaK image, colorized and mono
And the infrared cwl 850nm, fwhm 20nm filter showing the active regions

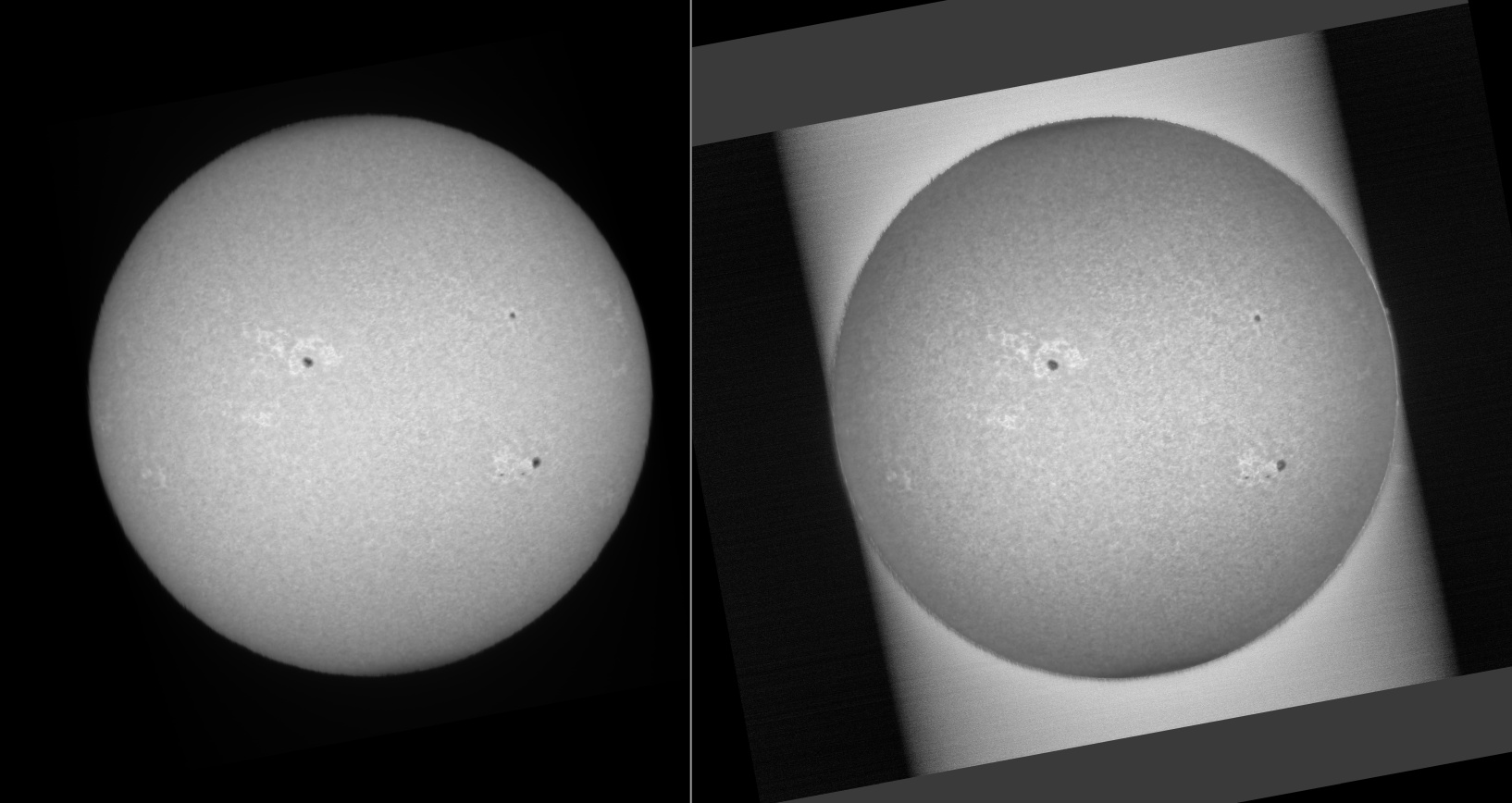

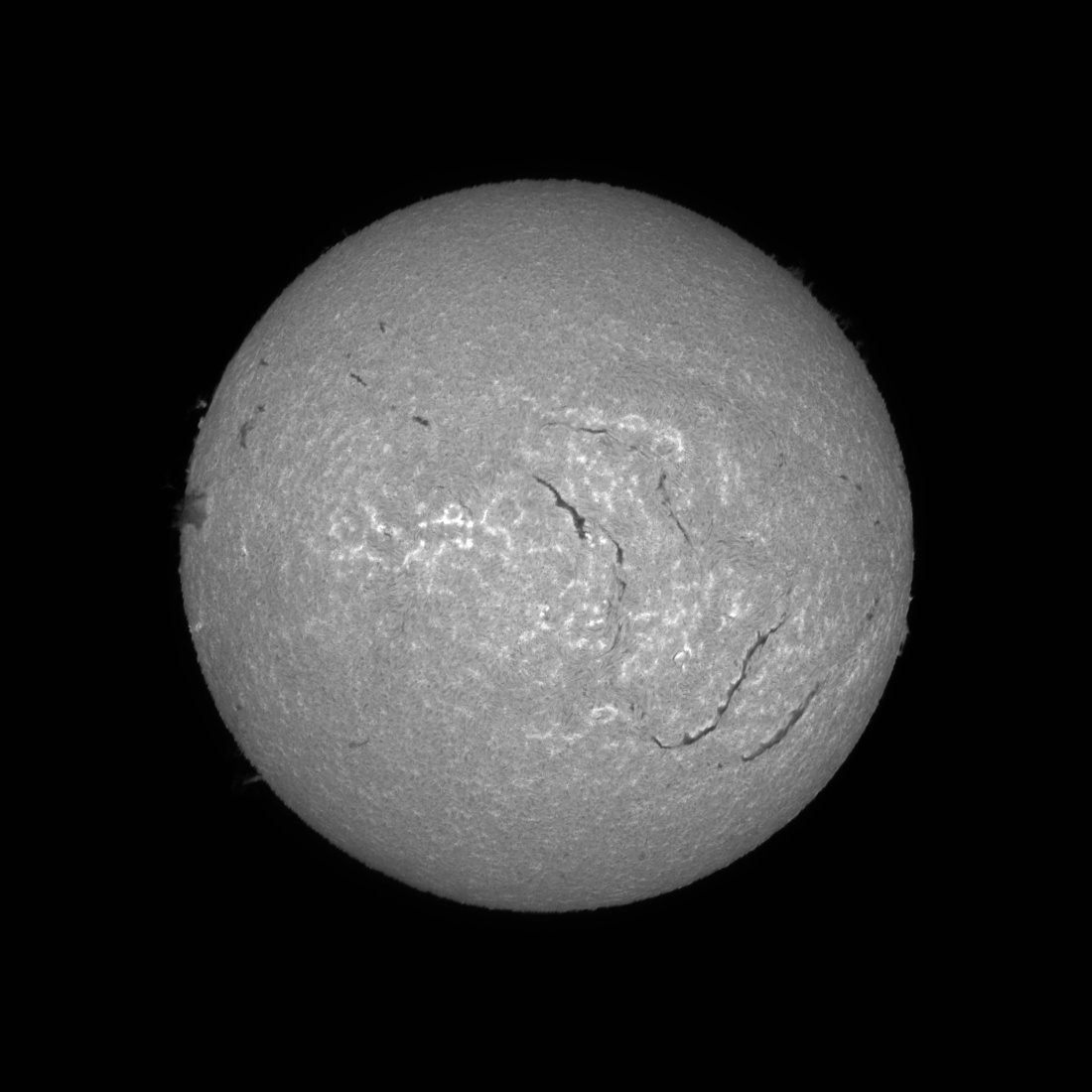

ASI 178MM (cooled), IR850nm 20nm fwhm, Skywatcher 72/420 ED-APO, ND5, mountpusher, EQ3-mod — I believe this image shows the Calcium Triplet

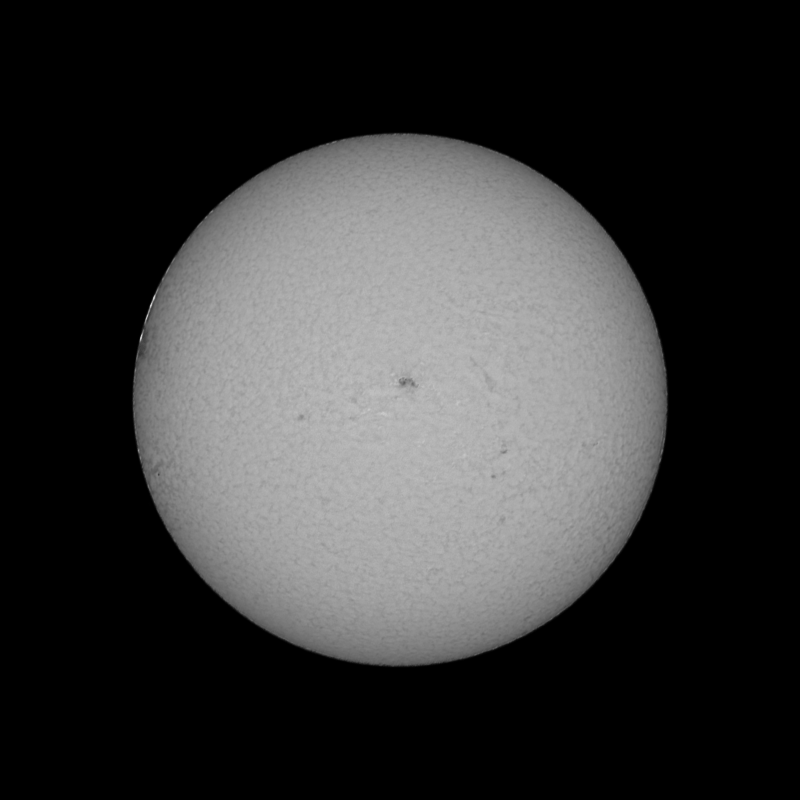

For comparison, here’s the Baader CaK 5nm image (tovább…)

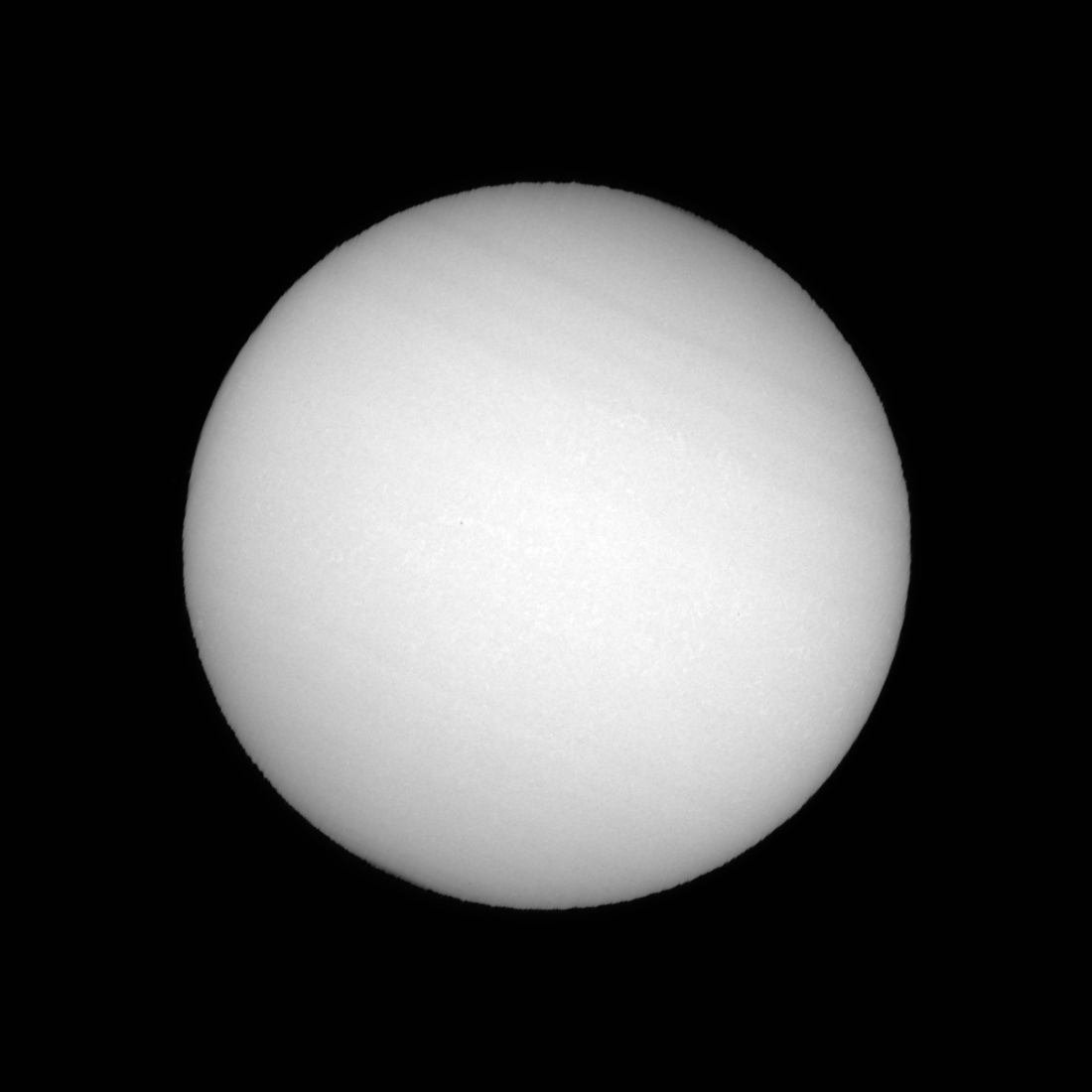

With my usual setup, the EQ3-mod, mountpusher, Baader Astrosolar ND3.8 Film, TS-Optics 76/342 TS76EDPH, ?filters?, ASI 178MM (cooled), I though what if I got creative. I put in the IRpass 850 filter from ZWO, and added an additional ND1.3 filter, because the ND5 front filter was a bit out of reach. Afterthought: I don’t know the transmittance curve of the ND filter, so maybe what I photographed is actually undefined-ish.

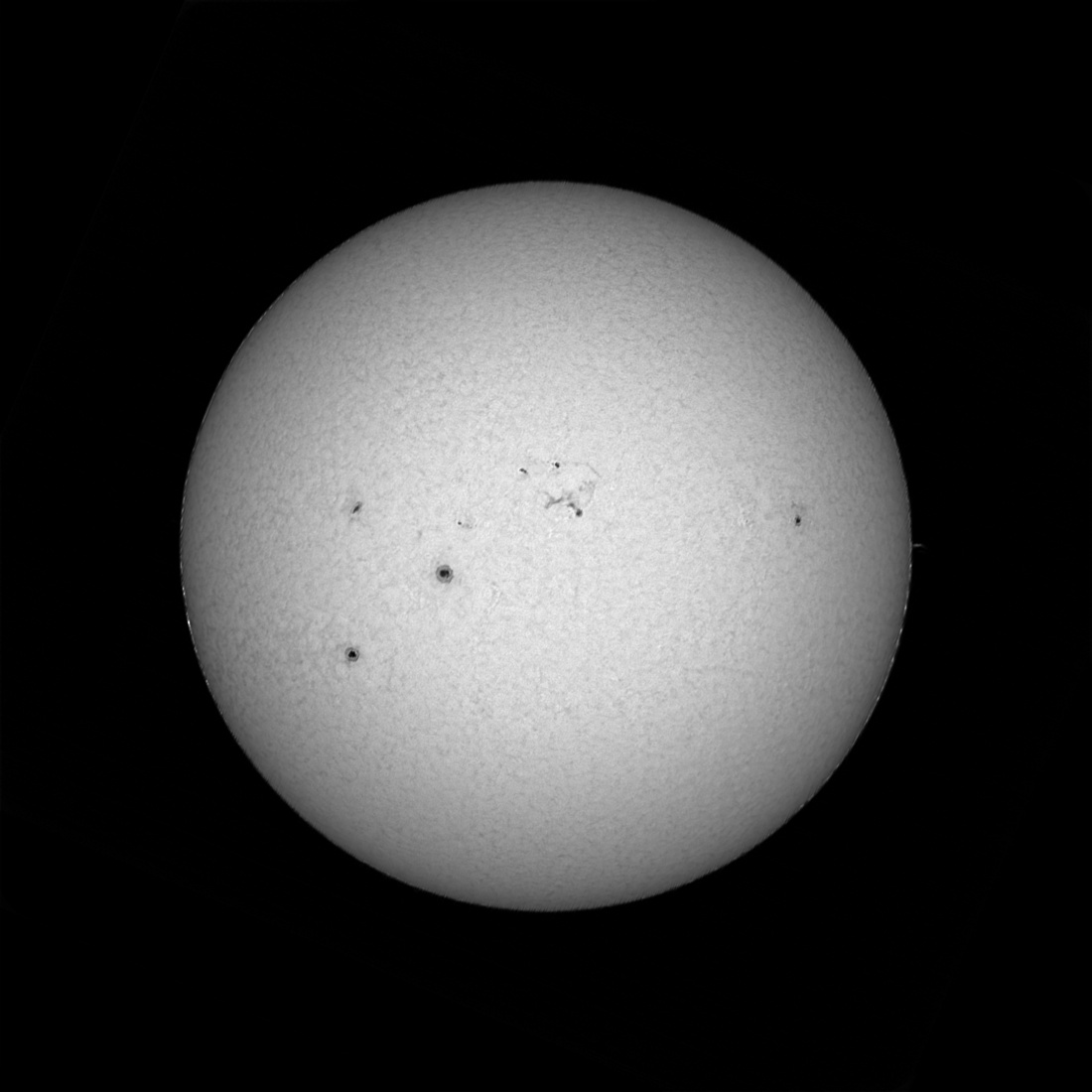

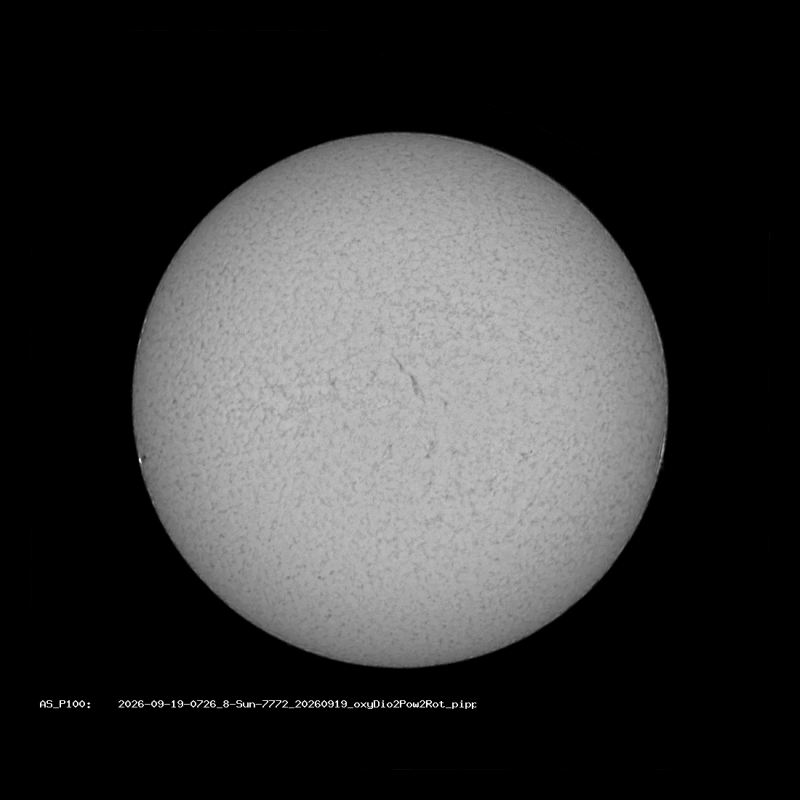

With the above in mind, the transmittance curve of the ZWO IR pass filter, along with the response curve of the camera, gives us a gentle hill around the magic 850 nanometer region, which is where the Calcium II triplet resides, and should draw the active regions in a similar way the CaK does. No matter what filters I used, these active regions show up in all of them, from UV, through CaK, deep blue, even in oxygen III, solar continuum, and 7nm Hα.
Digging out the details did take a good while, since the granulation (I guess it is that) on the surface of the Sun causes a sort of pixel noise to appear that doesn’t fare well with my emphasizing solutions. This „pixelnoise” is also present in my CaK images, and looks exactly the same on the DSO resources I checked at 160 and 170 nanometers.
ND1.3 and telescope glass aside, this is the wavelength-intensity area that should be in the photo. Telluric absorption is not that interesting in this region, and is uniform across the solar disk anyway.
Az elmúlt időszakban, ilyen-olyan okokból az asztrofotós tevékenységem a napkorongra összpontosult. Rengeteg szűrőt fordítottam a Nap felé, ezek egy része kifejezetten Nap-észleléshez készült, másokat inkább kontár, lássuk milyen lesz alapon. A kalcium K vonala természetesen az egyik kedvencem. Most, hogy a Baader kihozta a jól ismert és méltán szeretett 1.25″-ös kalcium K cella második generációs, felújított változatát, gondoltam, gyorsan ki is próbálom, összehasonlítom a régit az újjal, a sokkal keskenyebb sávú (és szélesebb árú) Lunt modullal, és persze más szűrőkkel.
Az asztrofotós munkásságom hobbi, tudományos cél nélkül, a hangulatért, a csillagászat szépségéért és a fotókért készítem ezeket a képeket, ennek megfelelően mateket vagy fizikát ebbe a cikkbe sem fogok írni.
Dióhéjban 1: alig van különbség, de azért mégis.
Dióhéjban 2: teljes napkoronghoz akinek megvan a régi kalcium szűrő, az megtarthatja, vitatható, hogy jobb-e az új filter képe, akkor is, ha a régi filterem több éves. Ennyire jók ezek a filterek, régin is, újonnan is. A borsos árat is figyelembe véve, ezek a kicsi kalcium szűrők nem vehetik fel a versenyt a Lunt sokkal keskenyebb sávú moduljával.
Dióhéjban 2: a Baader Venus U szűrőnek is adjunk egy esélyt, sőt a mélykék szűrőnek is. Van ott még Fraunhofer-vonal, ami szépen mutatkozik kékben is, solar continuum-ban is, sőt még a mélyégre szánt hidrogén alfa filter is mutatja pontosan ezeket az aktív zónákat.
Dióhéjban 3: a Vénusz légköréhez érdekes lehet ez az új kalcium szűrő, hiszen az expozíciós időt megfelezi: hiába névleg keskenyebb a szűrő, egyszerűen több fényt enged be, ami a Vénuszhoz mindenképp kívánatos. Itt alul még a régi kalcium K szűrős kép a Vénuszról, a nagy 2020-as szezonból.
Vénusz 2020-04-05, Baader CaK (gen1) mint cián és zöld mint narancs, bikolor, hamis színes fotó N150/750 tububussal.
As you know, due to various reasons, lately I’ve been doing solar imaging almost exclusively, focusing on full disk observations. Of the many filters I have turned towards the Sun — some dedicated solar filters, some more in a hacker spirit –, the Calcium K wavelength is one of my favorites, obviously. Now that Baader started selling its generation ii CaK filter, I figured I’d test it against itself, the first generation, and against Lunt’s Calcium module.
As you also know, I record images as a hobby, without any specific scientific goal, I just like the rigor and if some aesthetics can arise from it, in the form of nice solar disk images in this case.
TLDR0: not much difference, but still.
TLDR1: if doing full disk, if you have the old CaK and like it — keep it and your setup the way it is, the new filter is nice, the profile is standard, but overall, doesn’t show anything new nor better than the old one. Both are that good. Obviously not as good as Lunt’s CaK, but they are a fair competition, given the price range.
TLDR2: if you have the Venus U filter, do use it. It’s not as good for the Sun’s active regions as the CaK, but still pretty good. Also, give the dark blue a chance. Or basically any filter you own.
TLDR3: for Venus, the new filter may yield better images, due to it letting through about two times more light (half the expo time). I like very much the CaK images I obtained of Venus, in the 2020 epic season.
Venus, on 2020-04-05, using Baader’s CaK (gen1), as a false bi-color image with a green filter, mapped to cyan and orange respectively, with a N150/750 tube.
